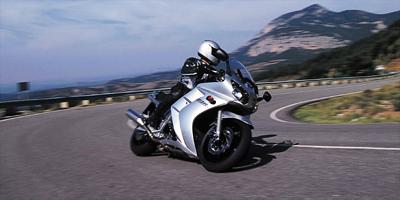

FJR1300
Technical specifications ENGINE Type: Liquid-cooled, 4-stroke, DOHC, 16-valve,
inline four-cylinder Displacement: 1,298 cc Bore & stroke: 79.0 mm x 66.2 mm
Compression ratio: 10.8:1 Max. power: 145 HP @ 8,500 rpm Max. torque: 125.5
Nm (12.8 kg-m) @ 6,000 rpm Lubrication: Wet sump Fuel supply: Electronic Fuel
Injection Clutch type: Wet, multiple discs Ignition: TCI Starter system: Electric
Fuel tank capacity: 25 liters Engine oil capacity: 4.9 liters Transmission:
Constant mesh, 5-speed Final transmission: Shaft CHASSIS Overall length: 2,195
mm Overall width: 758 mm Overall height: 1,304 mm Seat height: 805 mm Wheelbase:
1,515 mm Caster angle: 26 Trail: 109 mm Dry weight: 237 kg Front suspension:
Telescopic forks, 48 mm tubes Front suspension stroke: 135 mm Rear suspension:
Link-type swingarm Rear suspension stroke: 120 mm Front brake: Dual disks, 298
mm Rear brake: Single disc, 282 mm Front tire: 120/70 ZR17 Rear tire: 180/55
ZR17
